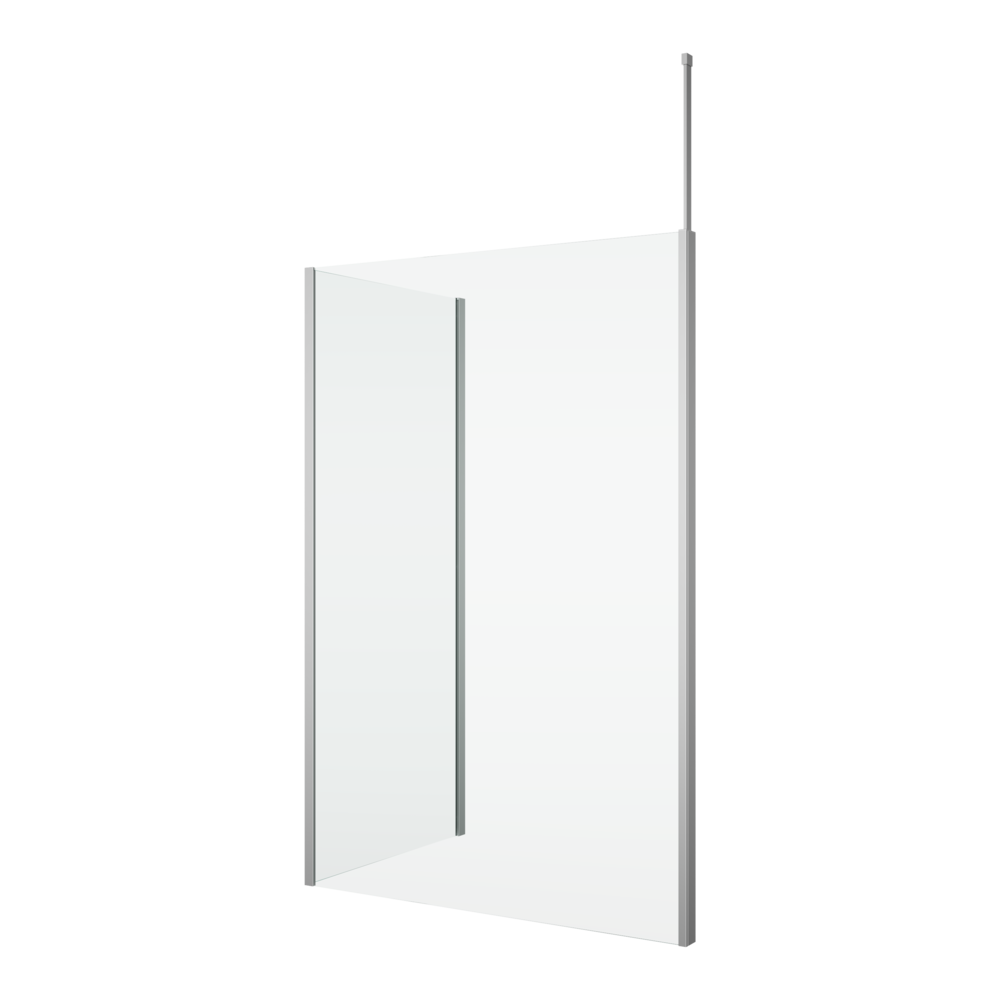

DIVERA D22WI1V+D22F3 - 2x Single fixed panel with adjustable profile
Dimensions | Width | Height |
---|---|---|
Standard | D22F1: 700, 750, 800, 900, 1000, 1200, 1400 D22F3: 700, 750, 800, 900, 1000, 1200, 1400 | D22F1: 2000 D22F3: 2000 D22B1V: 2000 |
Special | D22F1: 250 - 1400 D22F3: 250 - 1400 | D22F1: up to 2000 D22F3: up to 2000 D22B1V: 100 - 2000 |
Clear
Graniet
Screen
Lines
Silver gloss
BLACK LINE
The wall junction / Alignment to the wall
The wall junction / Alignment to the wall
Stabilization
Downloads
Mounting manuals
D22BTK1V_(19796)-5
(PDF) 1.02 MB
D22F3_(19785)-4
(PDF) 2.18 MB
D22F3V_(19786)-4
(PDF) 2.14 MB
Product images
Ronal_DIVERA_D22WI1V-D22F3 on white background
(JPG) 666.23 KB
Ronal_DIVERA_D22WI1V-D22F3 on transparent background
(PNG) 6.5 MB
Ronal_DIVERA_D22WI1V-D22F3_BLACK-LINE on white background
(JPG) 648.95 KB
Ronal_DIVERA_D22WI1V-D22F3_BLACK-LINE on transparent background
(PNG) 6.12 MB
CAD files
divera_d22wi1v-d22f3_2d_dwg
(ZIP) 1.55 MB
divera_d22wi1v-d22f3_2d_dxf
(ZIP) 510.06 KB
divera_d22wi1v-d22f3_3d_3ds
(ZIP) 1.31 MB
divera_d22wi1v-d22f3_3d_dwg
(ZIP) 3.46 MB
divera_d22wi1v-d22f3_3d_dxf
(ZIP) 6.14 MB
divera_d22wi1v-d22f3_3d_obj
(ZIP) 1.28 MB
divera_d22wi1v-d22f3_3d_rfa
(ZIP) 470.24 KB
divera_d22wi1v-d22f3_3d_skp
(ZIP) 83.05 KB
Technical drawings
Ronal_DIVERA_D22WI1V-D22F3_dimensions
(PDF) 157.23 KB
Spare parts
D22BTK1V_(19796)
(PDF) 147.89 KB
D22F3_(19785)
(PDF) 35.55 KB
D22F3V_(19786)
(PDF) 114.36 KB
Characteristics of the model range DIVERA
Standard height 2000 mm
Quality conforms to EN 14428:2008+A1 standard
Aquaperle anti-plaque glass treatment
Available in black mat
Product characteristics D22WI1V
4 glass finishes
6 mm safety glass
Width to 1400 mm
Special sizes available
Possibility of cut straight or at an oblique angle
Left or right mounting
Telescopic stand included
Product characteristics D22F3
4 glass finishes
6 mm safety glass
Width to 1400 mm
Special sizes available
Possibility of cut straight or at an oblique angle
