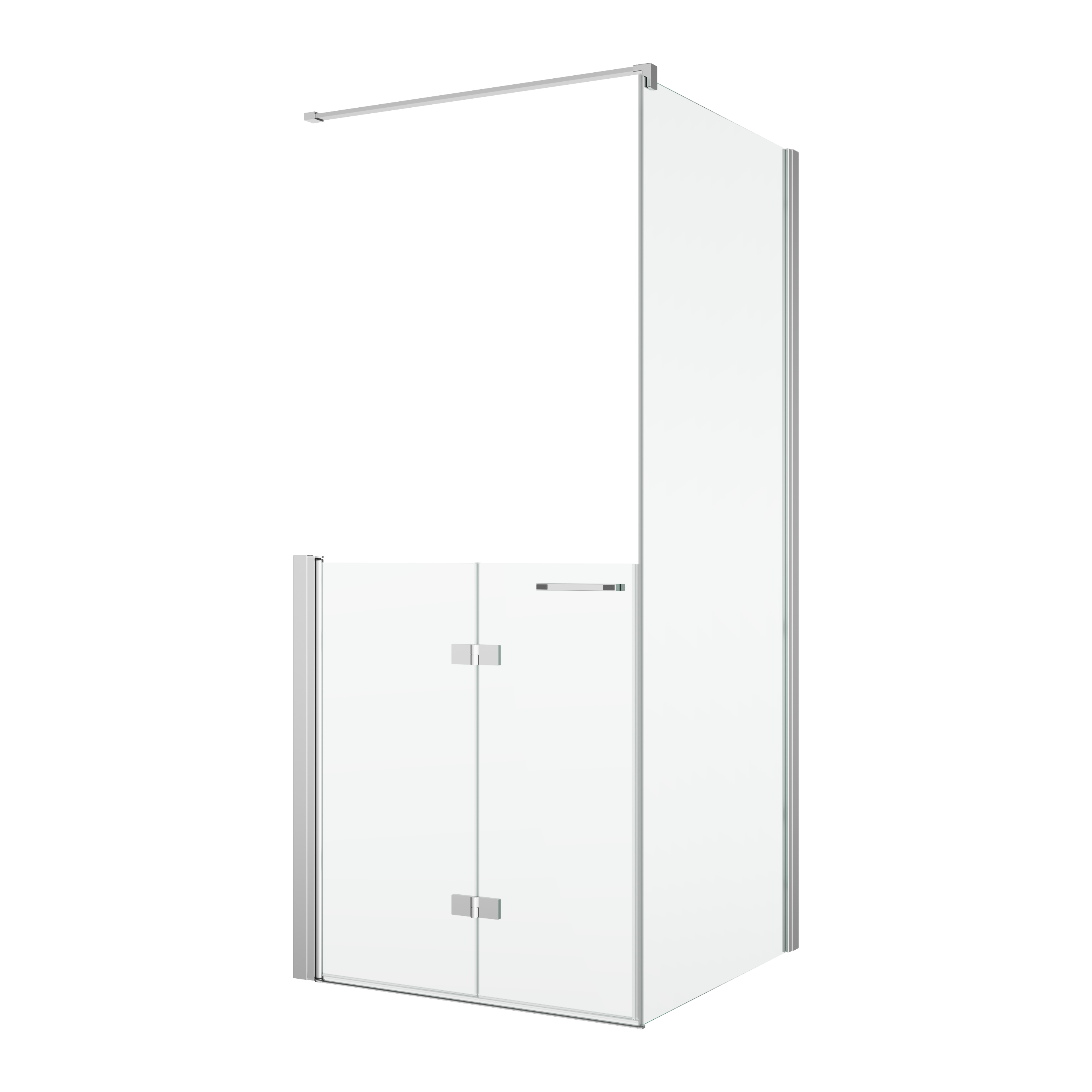

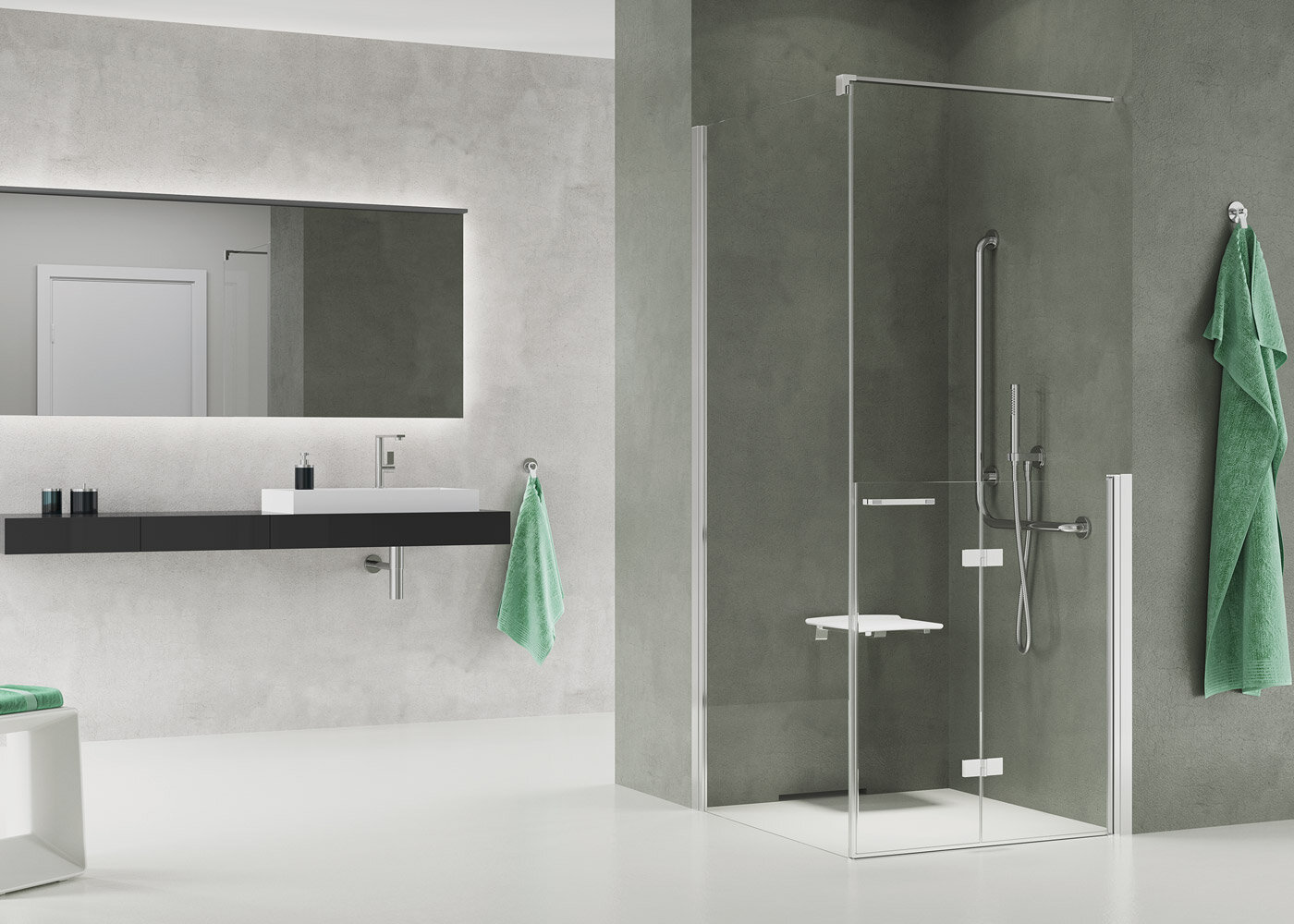

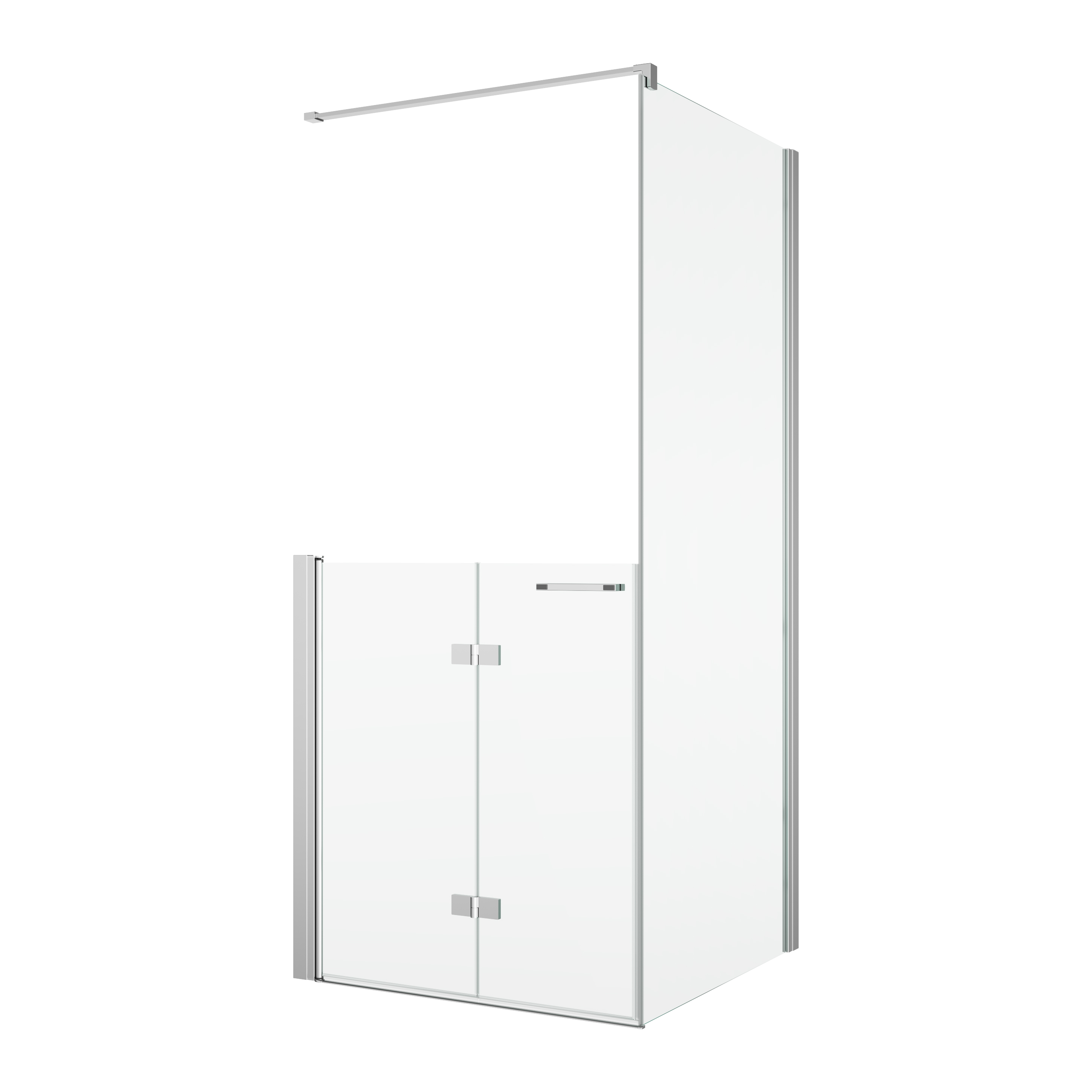

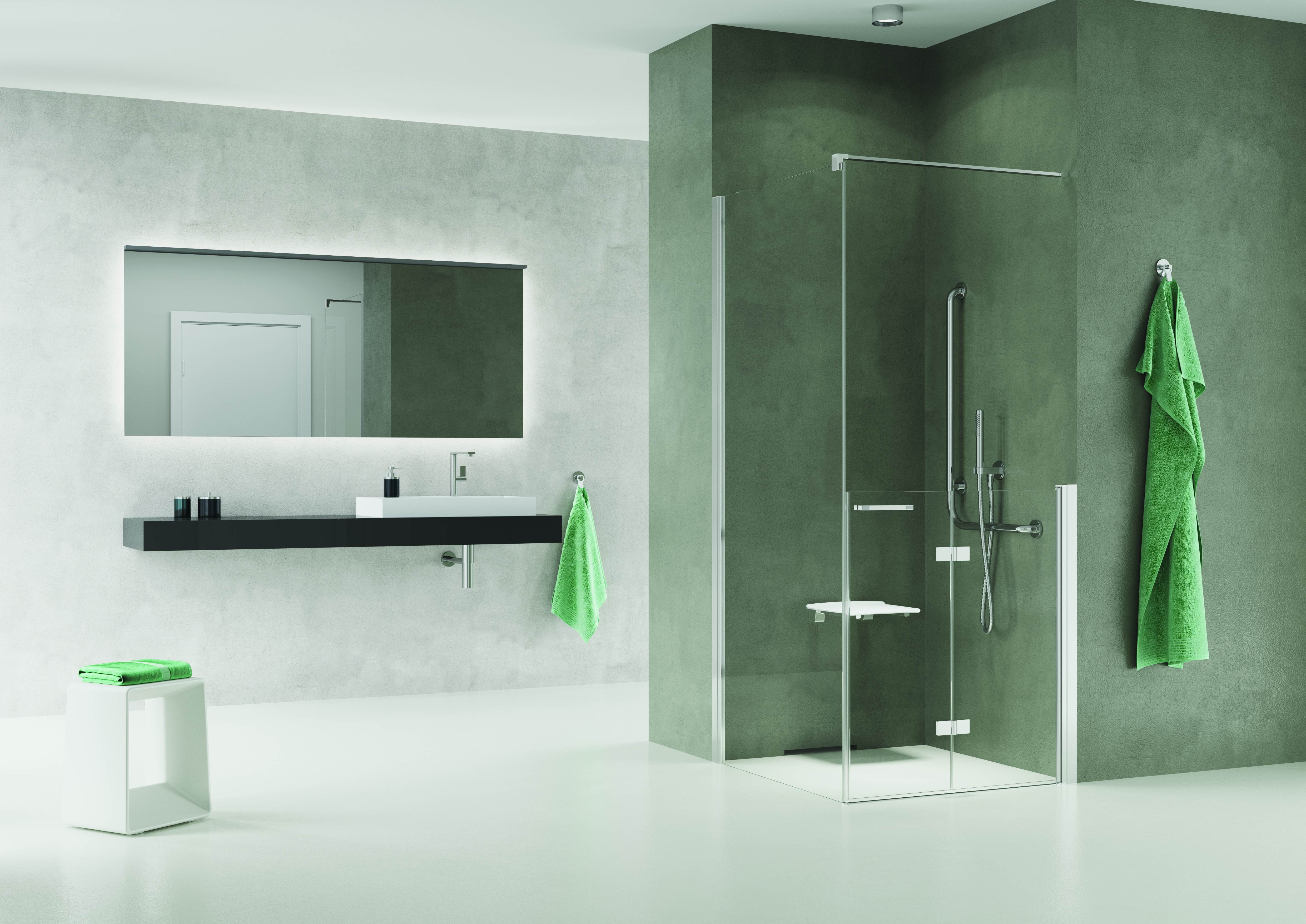

SOLINO M SOMF1+SOMT1 - Half height bi-fold door + fixed panel
| Dimensions | Width | Height |
|---|---|---|
| Standard | SOMF1: 800, 900, 1000 SOMT1: 700, 750, 800, 900, 1000, 1200 | SOMF1: 980 SOMT1: 1984 |
| Special | SOMF1: 600 - 1000 SOMT1: 200 - 1200 | - |
×
![Lightbox Image]()
Glass finish
×
![Lightbox Image]()
Clear
Frame finish
×
![Lightbox Image]()
Highgloss Polished
Highlights
×
![Lightbox Image]()
Handle
Door with a stroke mechanism
Equalizing profile
Equalizing profile
Mounting without a sill
Watertight sill
Downloads
Mounting manuals
SOMF1_SOMF1-SOMT1_SMEF1_G-D_(19717)-3
(PDF) 2.43 MB
Product images
Ronal_SOLINO_M_SOMF1-SOMT1
(JPG) 14.93 MB
Ronal_SOLINO_M_SOMF1-SOMT1 on white background
(JPG) 724.88 KB
Ronal_SOLINO_M_SOMF1-SOMT1 on transparent background
(PNG) 6.79 MB
Spare parts
SOMF1-SOMT1_(19717)
(PDF) 182.37 KB
Characteristics of the model range SOLINO M
Quality conforms to EN 14428:2008+A1 standard
Aquaperle anti-plaque glass treatment
Easy access for the handicapped
Product characteristics SOMF1
1 glass finish
6 mm safety glass
Width to 1000 mm
Standard height 980 mm
Special sizes available
Folding door
Product characteristics SOMT1
1 glass finish
6 mm safety glass
Width to 1200 mm
Standard height 1984 mm
Special sizes available
