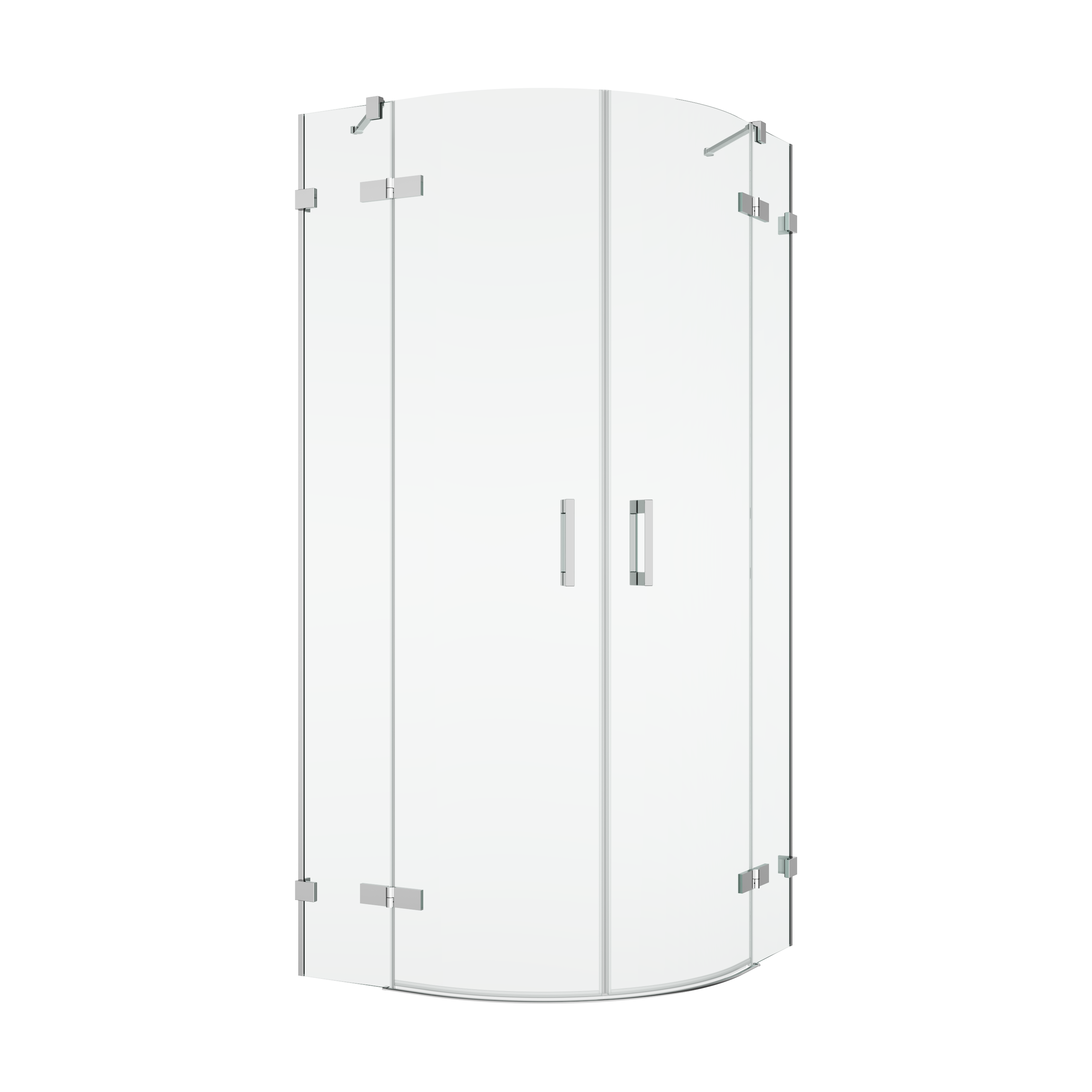

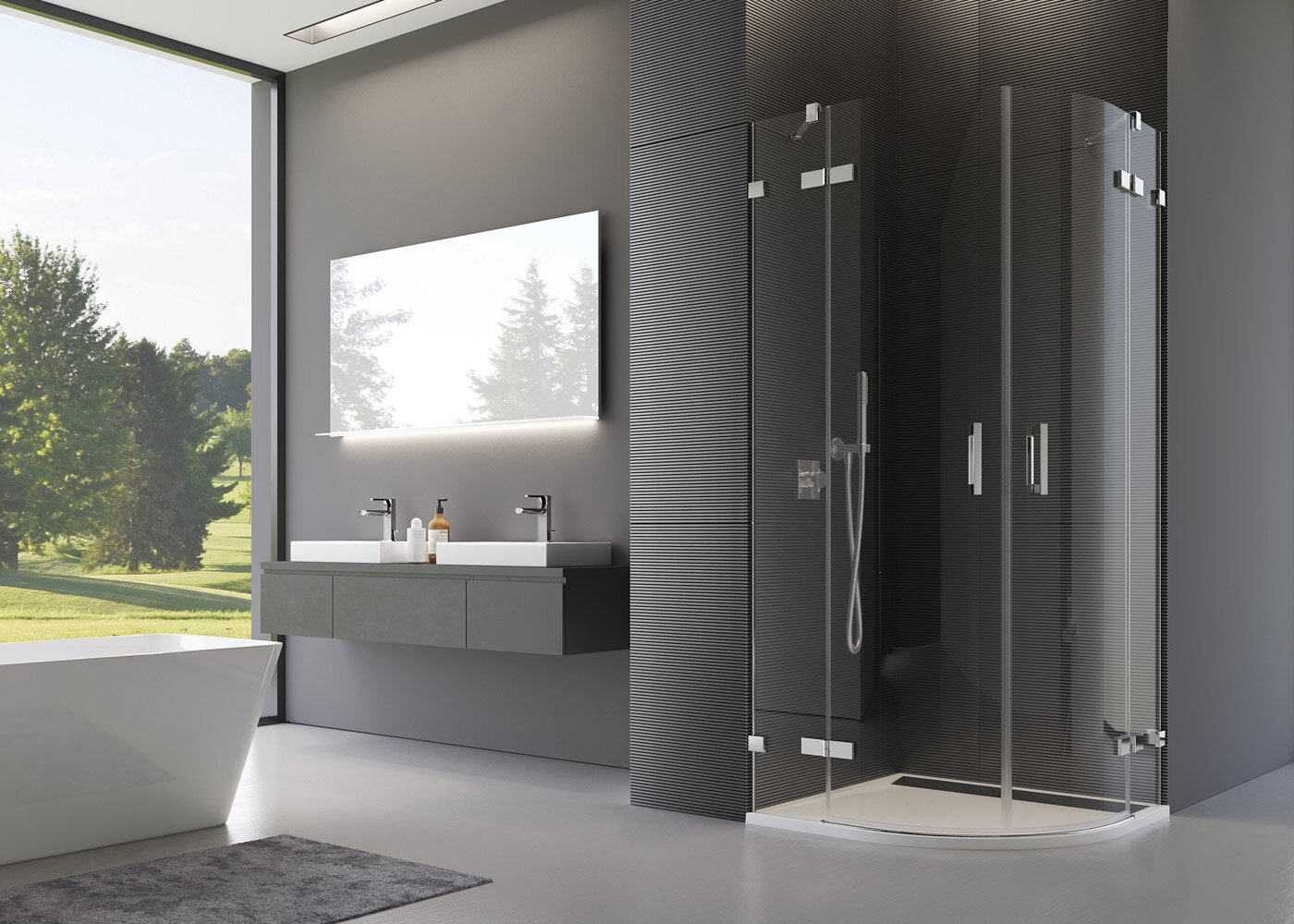

PUR PU4 - Quadrant swing door with wall clips
Dimensions | Width | Height |
---|---|---|
Special | 750 - 1200 | 2000 |
Clear
Chrome
Corner support
Equalizing profile
Square glass-to-glass hinge
Square glass-to-glass hinge
Square glass-to-glass hinge
Square wall clip
Square wall clip
Handle
Downloads
Mounting manuals
PU4_(19169)-7
(PDF) 1.52 MB
Product images

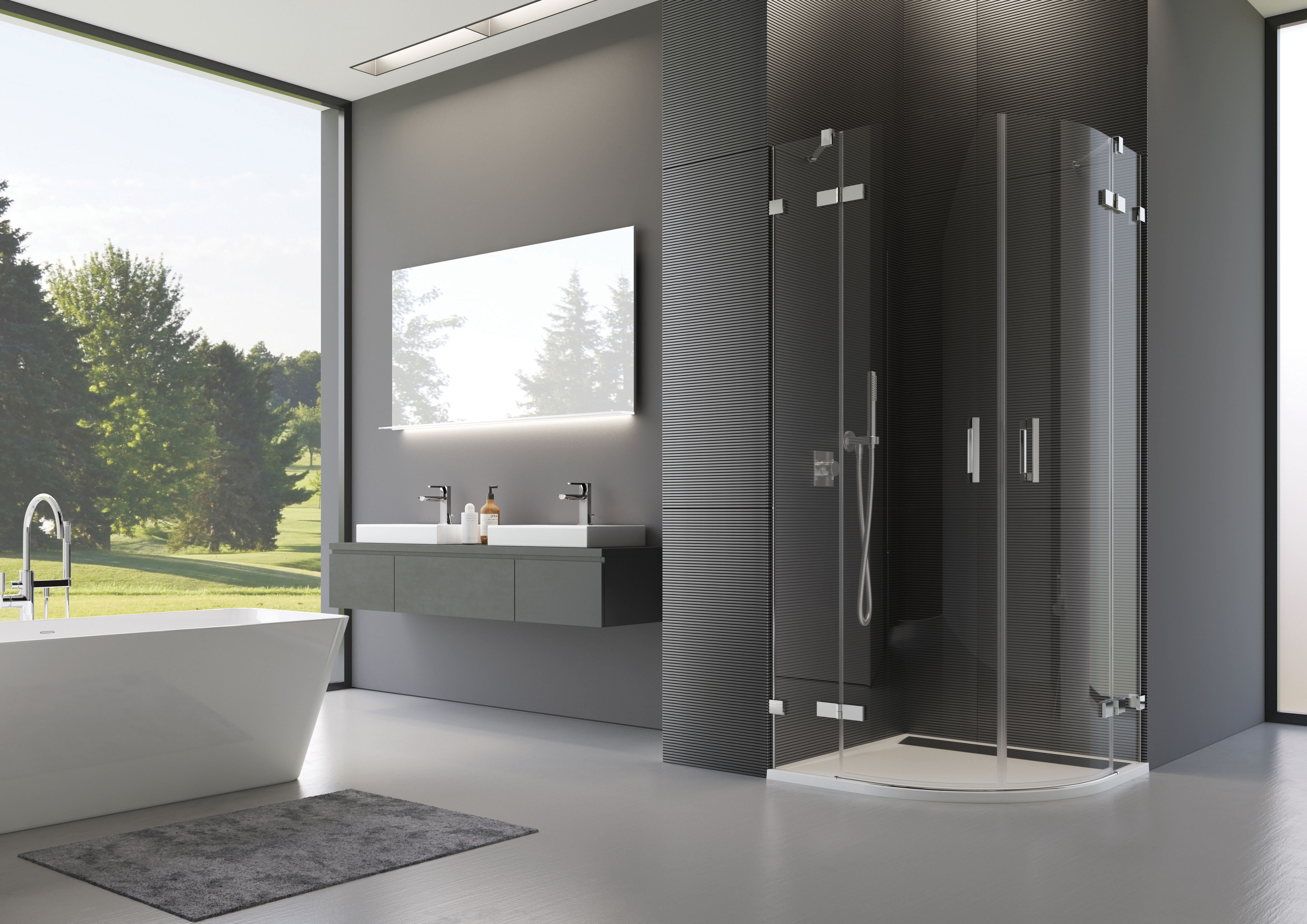

Ronal_PUR_PU4
(JPG) 8.97 MB

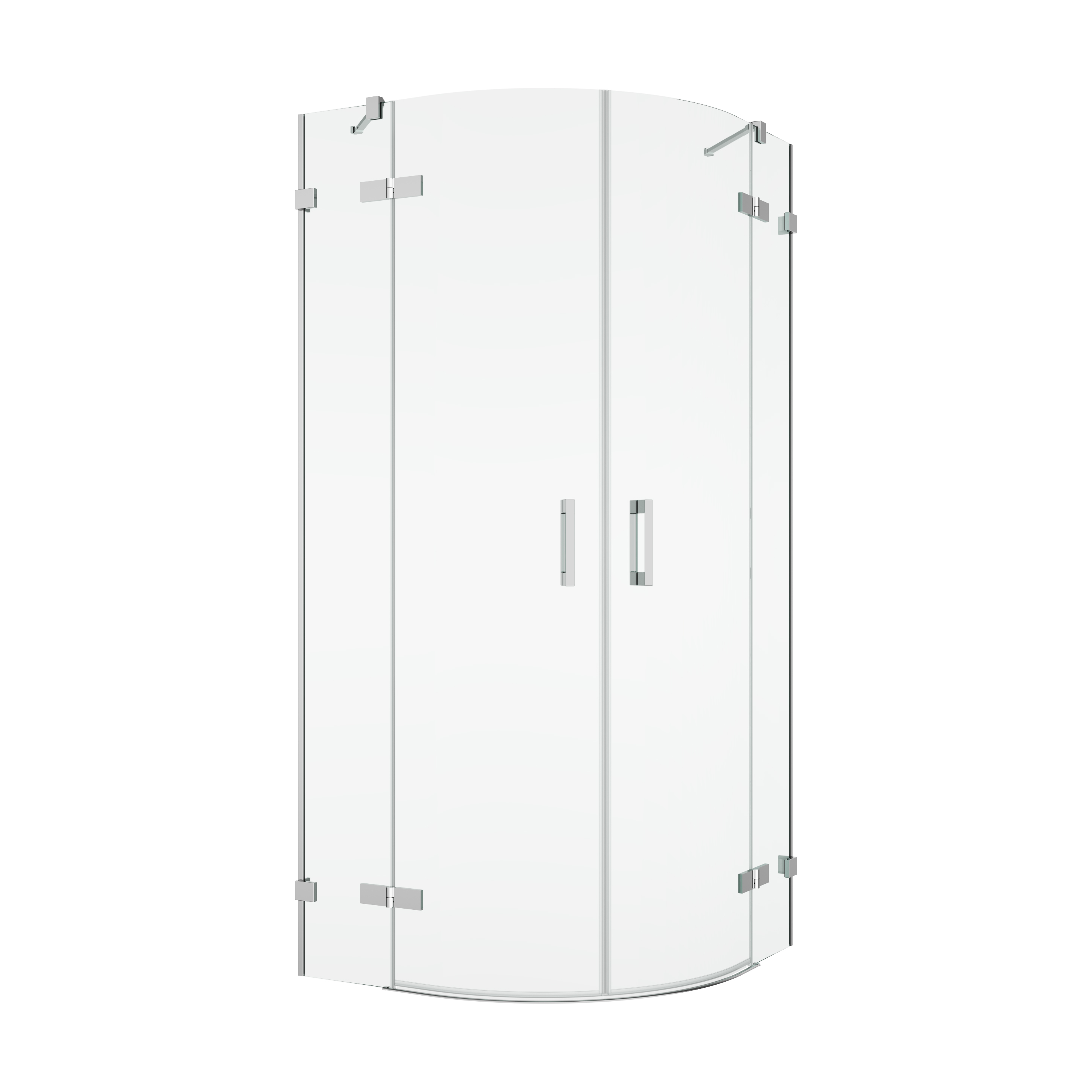

Ronal_PUR_PU4 on white background
(JPG) 740.05 KB

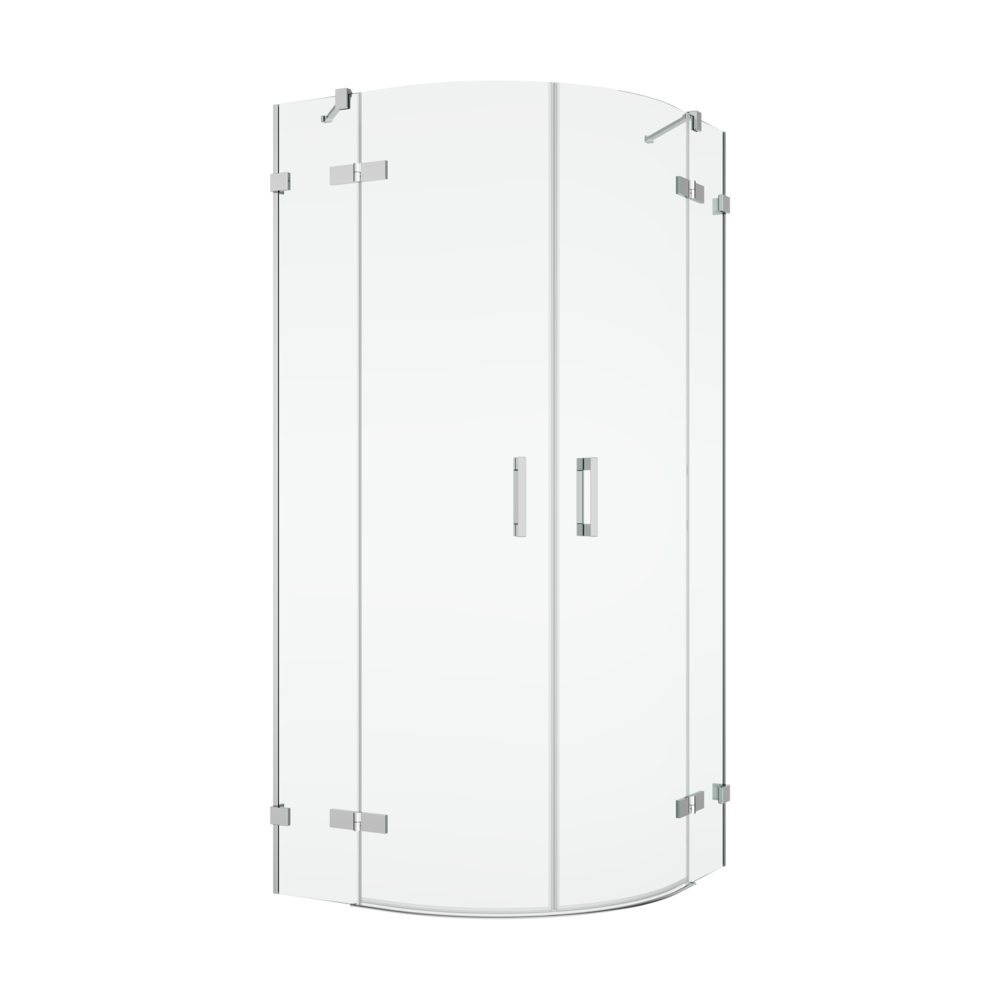

Ronal_PUR_PU4 on transparent background
(PNG) 9.76 MB
CAD files
pur_pu4_2d_dwg
(ZIP) 522.02 KB
pur_pu4_2d_dxf
(ZIP) 208.5 KB
pur_pu4_3d_3ds
(ZIP) 978.76 KB
pur_pu4_3d_dwg
(ZIP) 4.74 MB
pur_pu4_3d_dxf
(ZIP) 3.33 MB
pur_pu4_3d_obj
(ZIP) 1.03 MB
pur_pu4_3d_rfa
(ZIP) 3.41 MB
Spare parts
PU4_(19169)
(PDF) 173.67 KB
Characteristics of the model range PUR
Standard height 2000 mm
Quality conforms to EN 14428:2008+A1 standard
Aquaperle anti-plaque glass treatment
Increased cleaning comfort
Product characteristics PU4
1 glass finish
8 mm and 6 mm safety glass
Width to 1200 mm
Radius 500 mm or 550 mm
Special sizes available
Possibility of cut straight or at an oblique angle
Magnetic closing
Corner supports included
Swing door with outside opening
