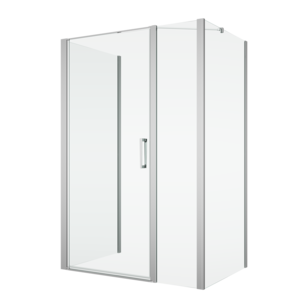

DIVERA D22T31+D22F1+D22F1 - Pivot door with fixed panel in line + 2x Fixed panel 90°
| Dimensions | Width | Height |
|---|---|---|
| Standard | D22T31: 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600 D22F1: 700, 750, 800, 900, 1000, 1200, 1400 | D22T31: 2000 D22F1: 2000 |
| Special | D22T31: 900 - 1600 D22F1: 250 - 1400 | D22T31: up to 2000 D22F1: up to 2000 |
Clear

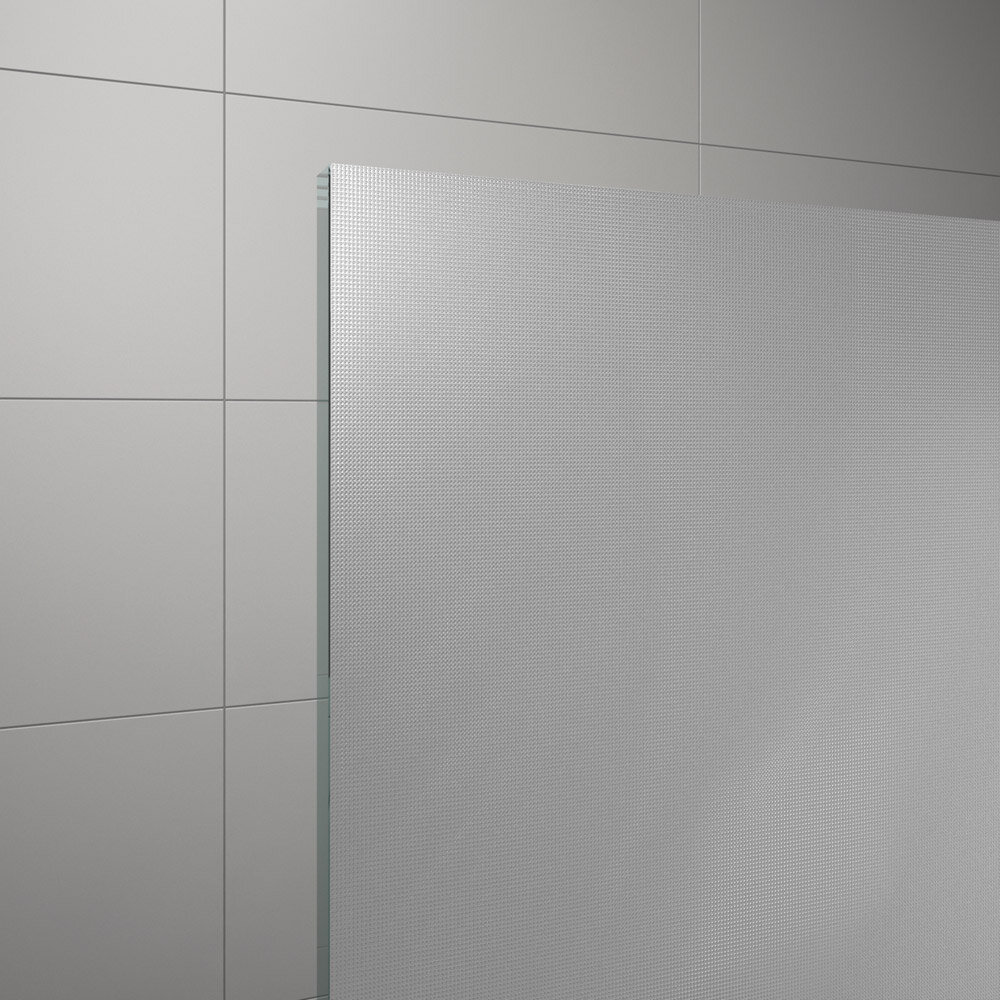

Graniet
Screen

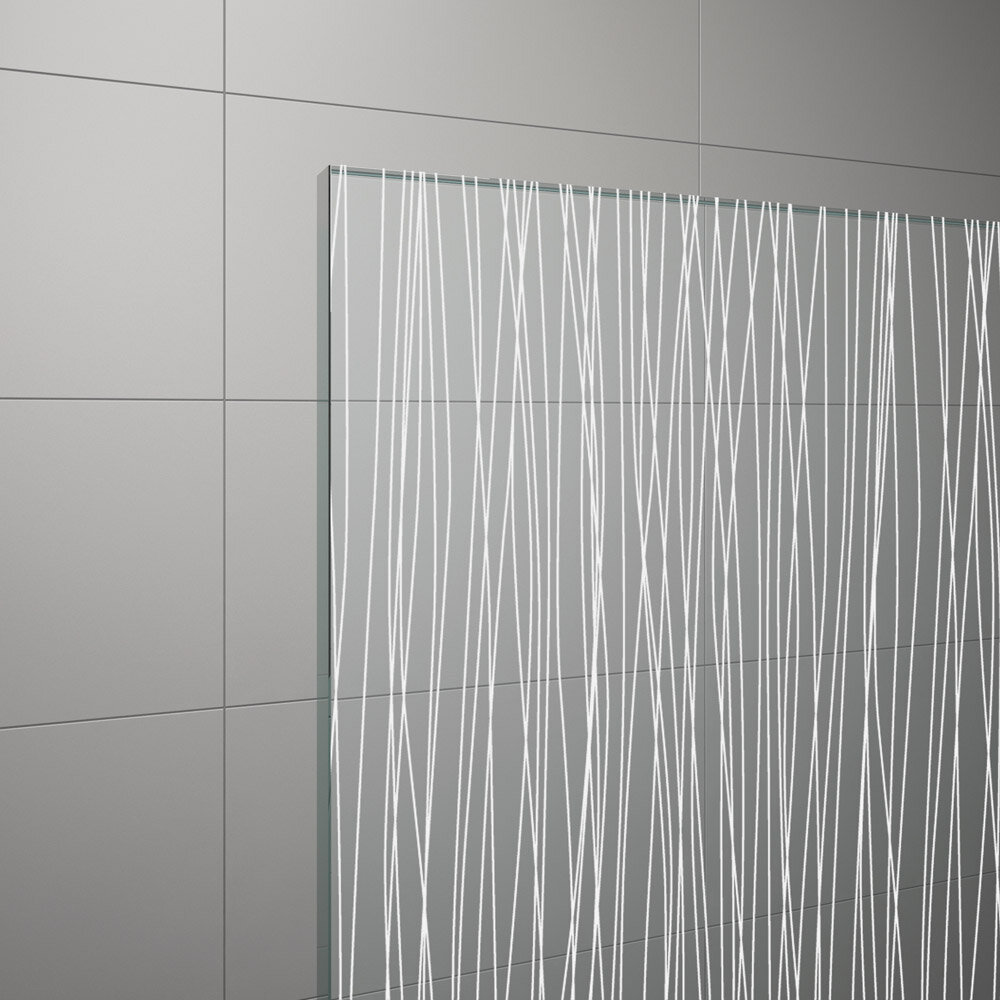

Lines
Silver gloss
BLACK LINE

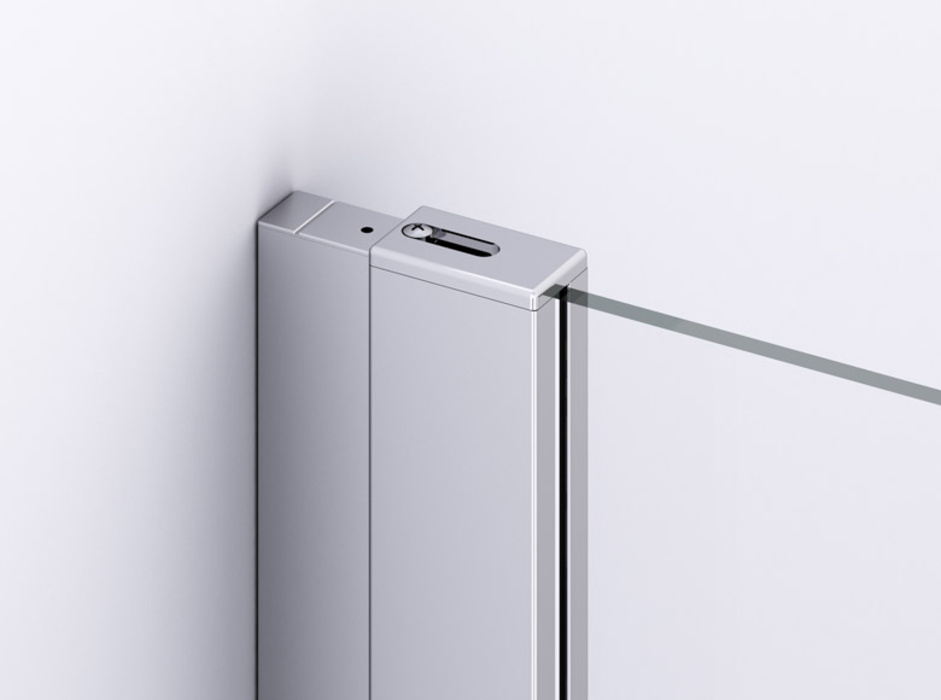

The wall junction / Alignment to the wall

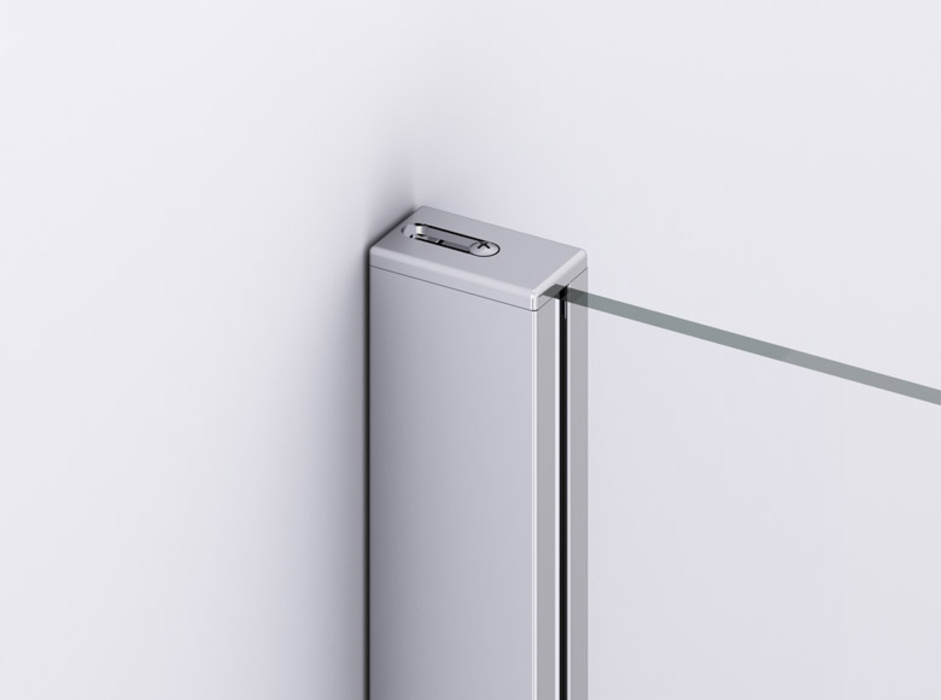

The wall junction / Alignment to the wall

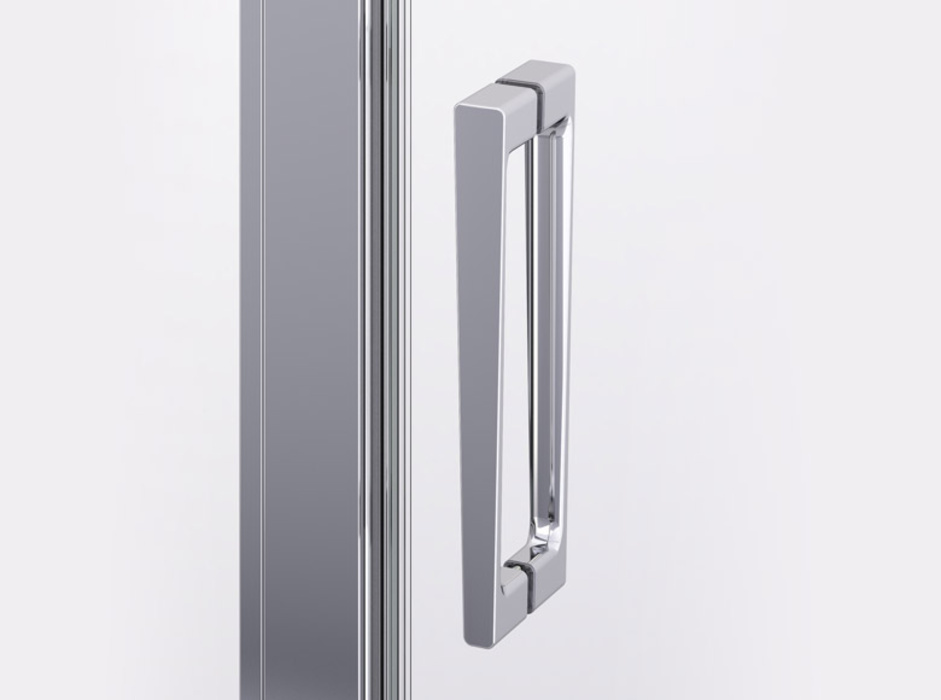

Handle

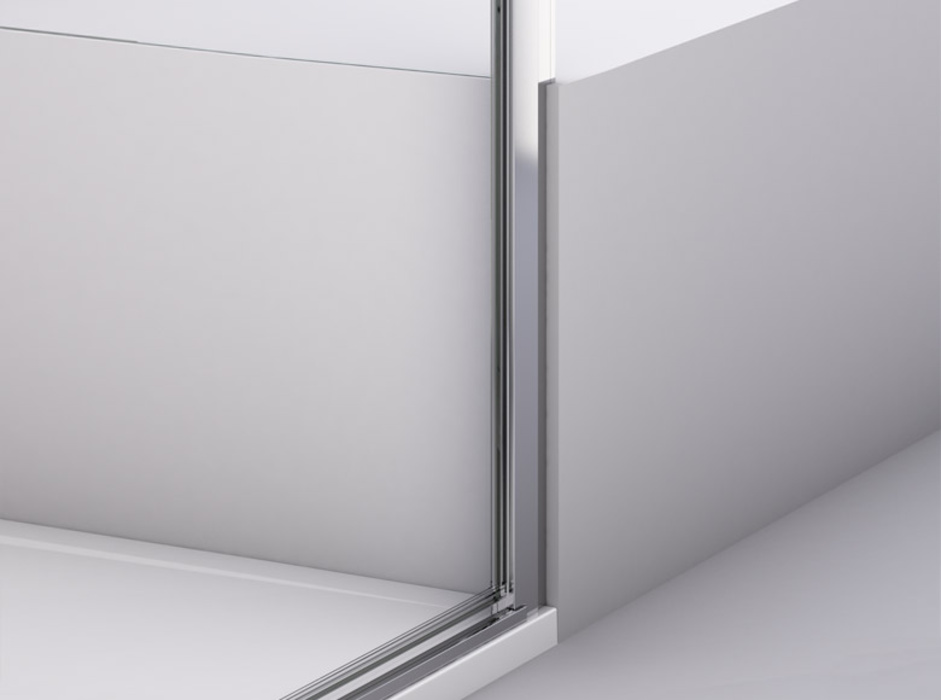

The shortened side panel

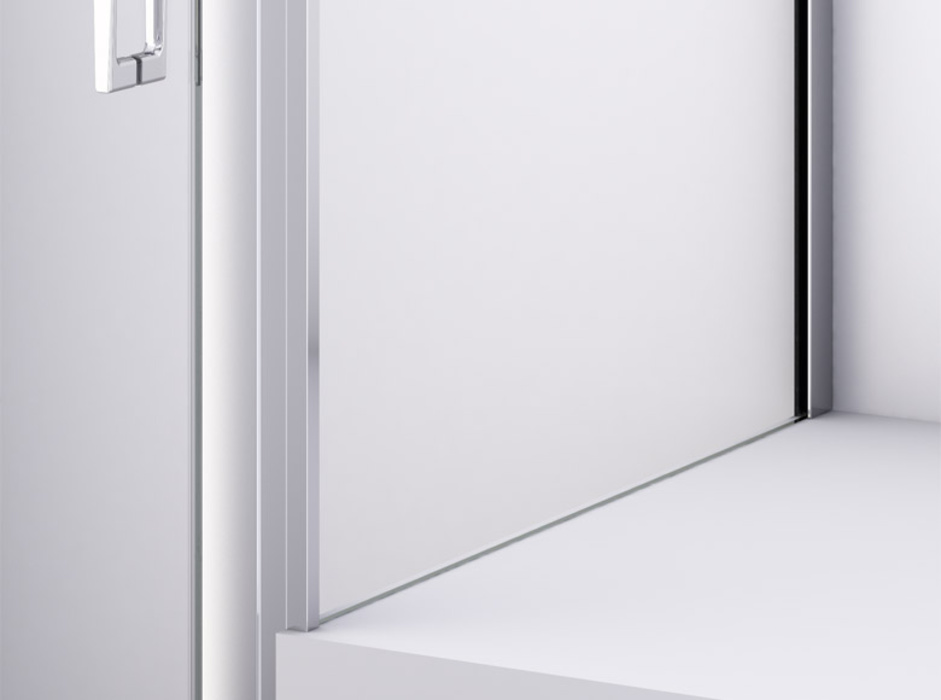

The shortened side panel

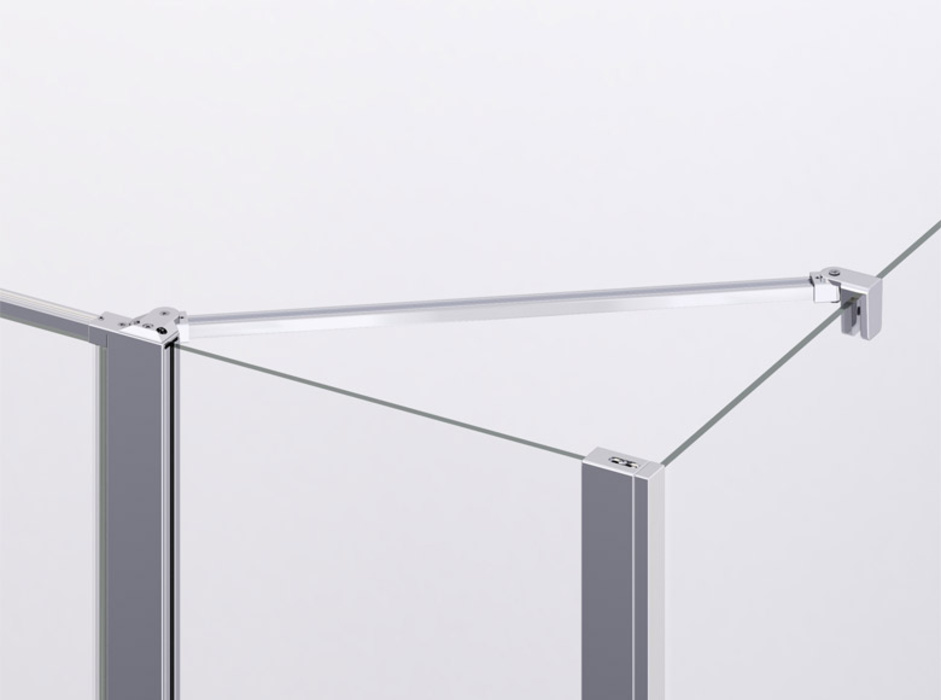

Stabilization
Downloads
Mounting manuals
D22T1_D22T1-D22F1_(19739)-6
(PDF) 4.57 MB
D22FF_(19747)-8
(PDF) 1.56 MB
Product images
Ronal_DIVERA_D22T31-D22F1-D22F1 on white background
(JPG) 838.01 KB
Ronal_DIVERA_D22T31-D22F1-D22F1 on transparent background
(PNG) 13.18 MB
Ronal_DIVERA_D22T31-D22F1-D22F1_BLACK-LINE on white background
(JPG) 785.93 KB
Ronal_DIVERA_D22T31-D22F1-D22F1_BLACK-LINE on transparent background
(PNG) 11.9 MB
Spare parts
D22T1-D22F1_(19739)
(PDF) 212.02 KB
D22FF_(19747)
(PDF) 58.39 KB
Characteristics of the model range DIVERA
Standard height 2000 mm
Quality conforms to EN 14428:2008+A1 standard
Aquaperle anti-plaque glass treatment
Available in black mat
Product characteristics D22T31
4 glass finishes
6 mm safety glass
Width to 1600 mm
Special sizes available
Possibility of cut straight or at an oblique angle
Left or right mounting
Magnetic closing
Corner support included
Pivot door with outside and inside opening
Product characteristics D22F1
4 glass finishes
6 mm safety glass
Width to 1400 mm
Special sizes available
Possibility of cut straight or at an oblique angle
