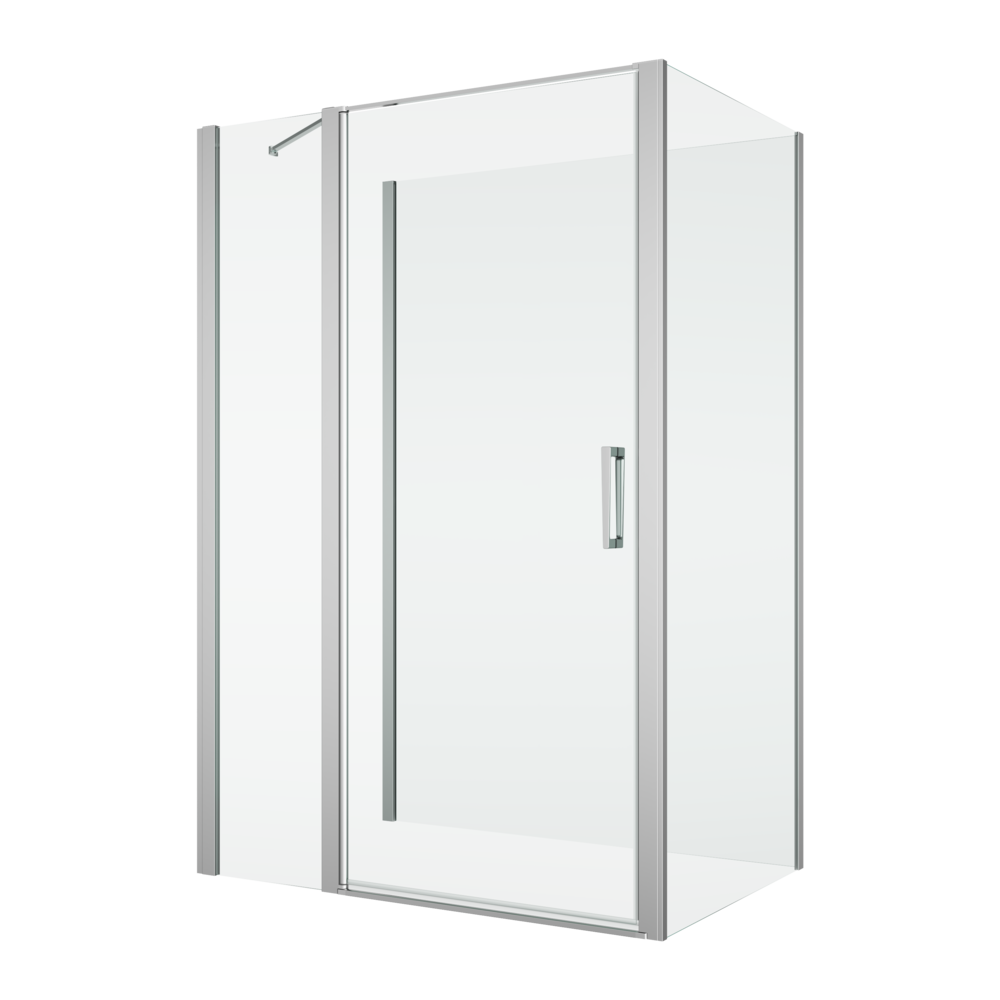

DIVERA D22T13+D22F1+D22F3 - Pivot door with fixed panel in line + 2x Fixed panel 90°
Dimensions | Width | Height |
---|---|---|
Standard | D22T13: 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600 D22F1: 700, 750, 800, 900, 1000, 1200, 1400 D22F3: 700, 750, 800, 900, 1000, 1200, 1400 | D22T13: 2000 D22F1: 2000 D22F3: 2000 |
Special | D22T13: 900 - 1600 D22F1: up to 1400 D22F3: up to 1400 | D22T13: up to 2000 D22F1: up to 2000 D22F3: up to 2000 |
Clear
Screen
Lines
Silver gloss
BLACK LINE
The wall junction / Alignment to the wall
The wall junction / Alignment to the wall
Simple clip connection for the door and side panel at 90°
Waterproofing
Handle
The shortened side panel
The shortened side panel
Stabilization
Downloads
Mounting manuals
D22T1_D22T1-D22F1_(19739)-6
(PDF) 4.57 MB
D22FF_(19747)-8
(PDF) 1.56 MB
D22F3_(19785)-4
(PDF) 2.18 MB
Product images
Ronal_DIVERA_D22T13-D22F1-D22F3 on white background
(JPG) 860.62 KB
Ronal_DIVERA_D22T13-D22F1-D22F3 on transparent background
(PNG) 13.75 MB
Ronal_DIVERA_D22T13-D22F1-D22F3_BLACK-LINE on white background
(JPG) 807.17 KB
Ronal_DIVERA_D22T13-D22F1-D22F3_BLACK-LINE on transparent background
(PNG) 12.52 MB
Spare parts
D22T1-D22F1_(19739)
(PDF) 212.02 KB
D22FF_(19747)
(PDF) 58.39 KB
D22F3_(19785)
(PDF) 35.55 KB
Characteristics of the model range DIVERA
Standard height 2000 mm
Quality conforms to EN 14428:2008+A1 standard
Aquaperle anti-plaque glass treatment
Available in black mat
Product characteristics D22T13
4 glass finishes
6 mm safety glass
Width to 1600 mm
Special sizes available
Possibility of cut straight or at an oblique angle
Left or right mounting
Magnetic closing
Corner support included
Pivot door with outside and inside opening
Product characteristics D22F1/D22F3
4 glass finishes
6 mm safety glass
Width to 1400 mm
Special sizes available
Possibility of cut straight or at an oblique angle
