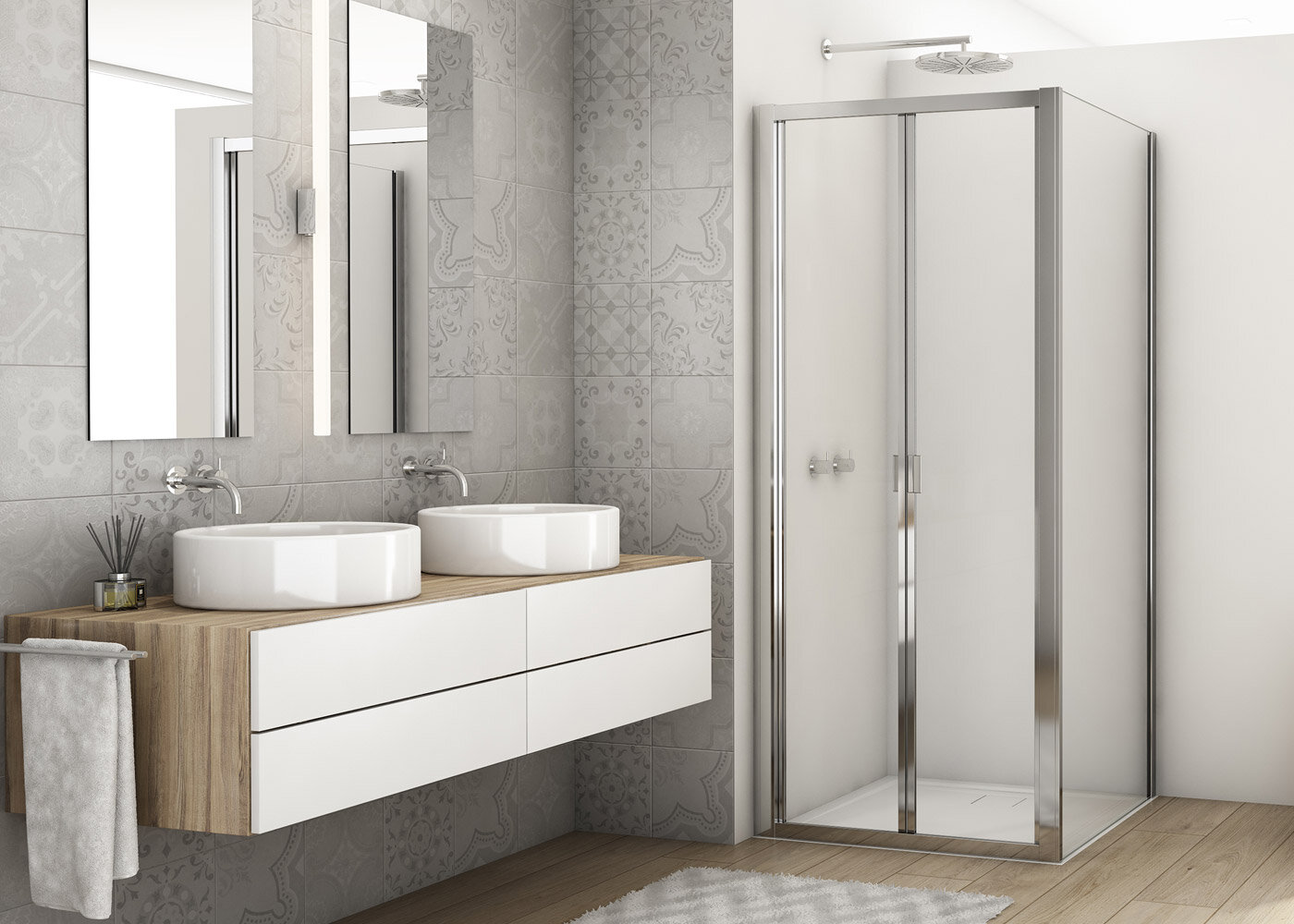

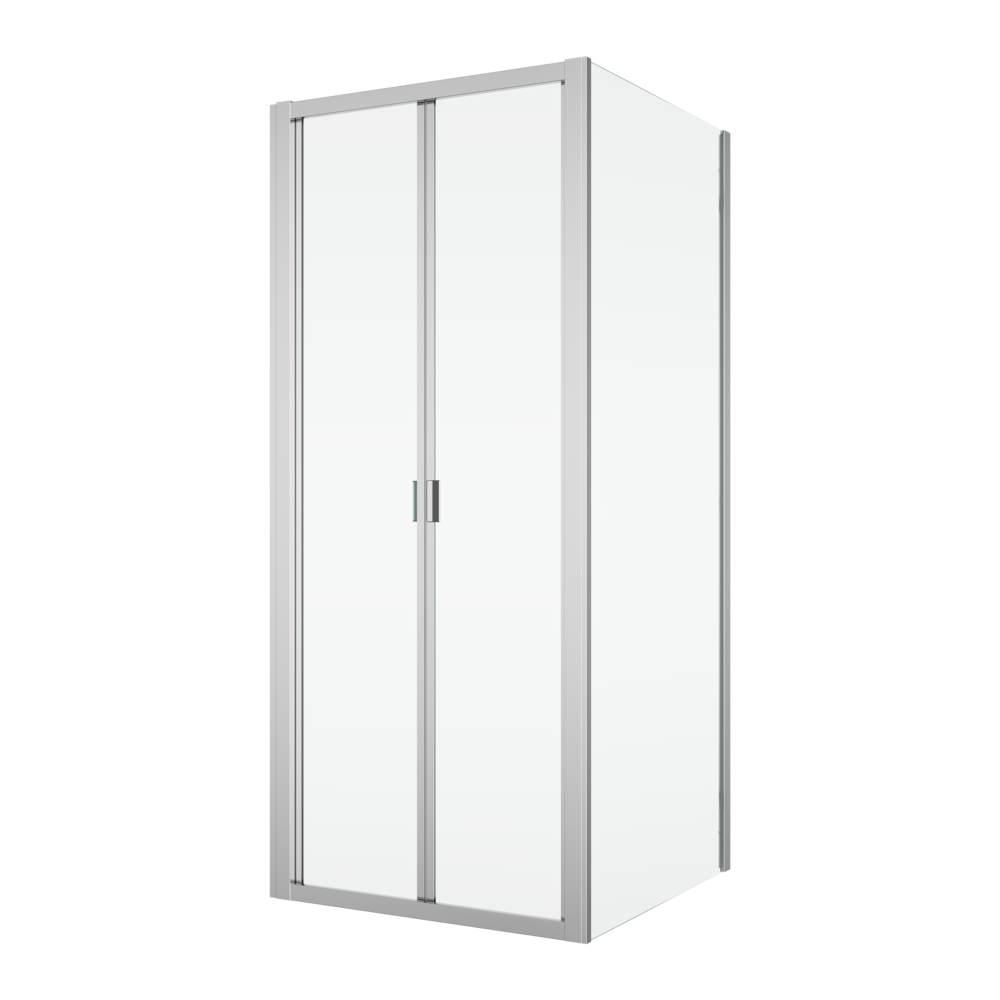

DIVERA D22K+D22F1 - Bi-fold door + Fixed panel
| Dimensions | Width | Height |
|---|---|---|
| Standard | D22K: 800, 900, 1000 D22F1: 700, 750, 800, 900, 1000, 1200, 1400 | D22K: 2000 D22F1: 2000 |
| Special | D22K: 600 - 1000 D22F1: up to 1400 | D22K: up to 2000 D22F1: up to 2000 |
Clear
Graniet
Screen
Lines
Silver gloss
BLACK LINE
The wall junction / Alignment to the wall
Handle
Downloads
Mounting manuals
D22K_D22K-D22F1_(19741)-7
(PDF) 3.63 MB
Product images
Ronal_DIVERA_D22K-D22F1
(JPG) 6.82 MB
Ronal_DIVERA_D22K-D22F1_BLACK-LINE
(JPG) 6.44 MB
Ronal_DIVERA_D22K-D22F1 on white background
(JPG) 815.38 KB
Ronal_DIVERA_D22K-D22F1 on transparent background
(PNG) 10.06 MB
Ronal_DIVERA_D22K-D22F1_BLACK-LINE on white background
(JPG) 750.68 KB
Ronal_DIVERA_D22K-D22F1_BLACK-LINE on transparent background
(PNG) 8.77 MB
CAD files
divera_d22k-d22f1_2d_dwg
(ZIP) 1.12 MB
divera_d22k-d22f1_2d_dxf
(ZIP) 507.82 KB
divera_d22k-d22f1_3d_3ds
(ZIP) 2.37 MB
divera_d22k-d22f1_3d_dwg
(ZIP) 7.37 MB
divera_d22k-d22f1_3d_dxf
(ZIP) 5.54 MB
divera_d22k-d22f1_3d_obj
(ZIP) 2.37 MB
divera_d22k-d22f1_3d_rfa
(ZIP) 850.39 KB
divera_d22k-d22f1_3d_skp
(ZIP) 249.16 KB
Technical drawings
Ronal_DIVERA_D22K-D22F1_dimensions
(PDF) 207.25 KB
Spare parts
D22K-D22F1_(19741)
(PDF) 334.95 KB
Characteristics of the model range DIVERA
Standard height 2000 mm
Quality conforms to EN 14428:2008+A1 standard
Aquaperle anti-plaque glass treatment
Available in black mat
Product characteristics D22K
4 glass finishes
6 mm safety glass
Width to 1000 mm
Special sizes available
Left or right mounting
Magnetic closing
Folding door
Product characteristics D22F1
4 glass finishes
6 mm safety glass
Width to 1400 mm
Special sizes available
Possibility of cut straight or at an oblique angle
