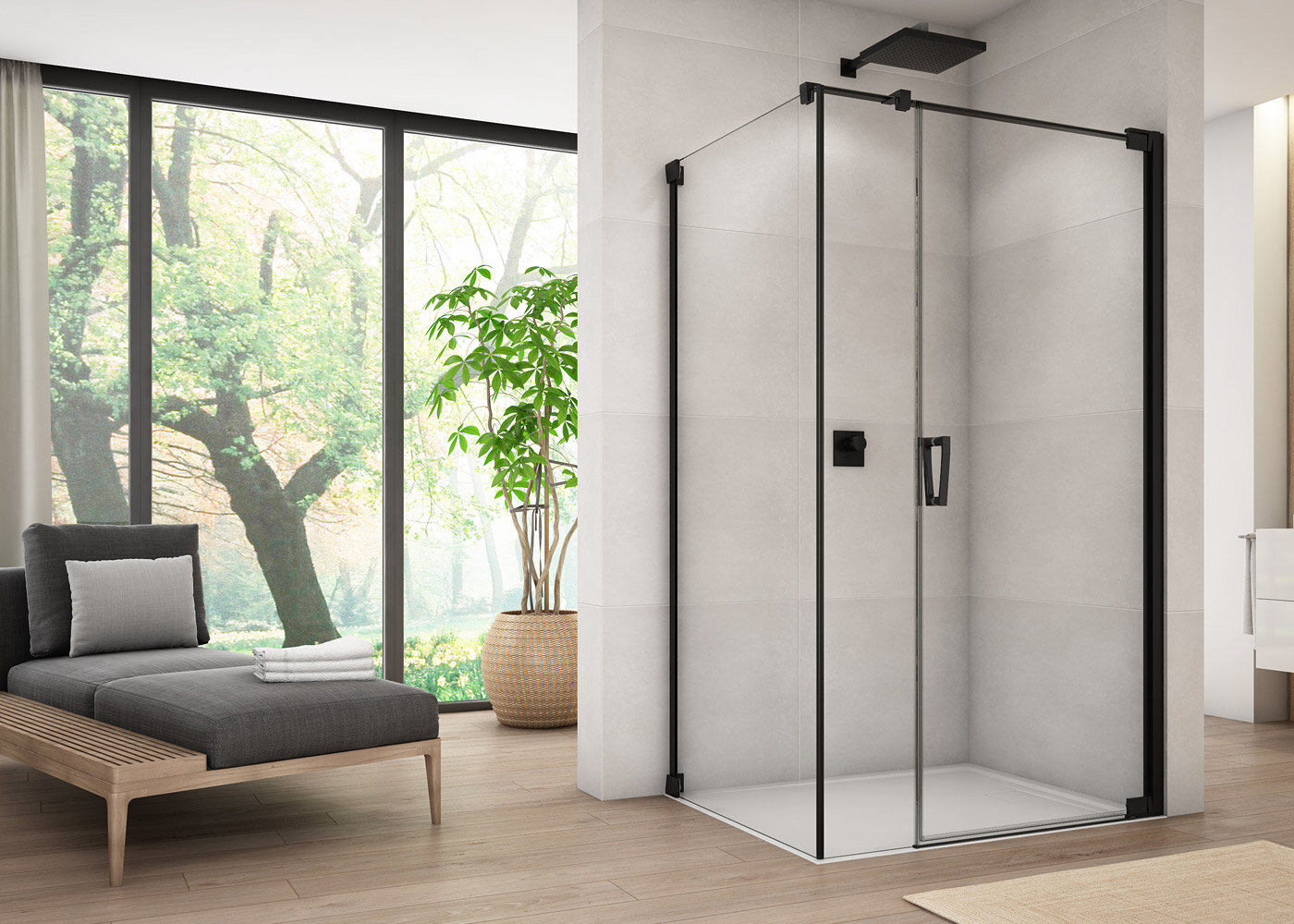

CADURA CA31C+CAT5 - Part opening pivot door + Fixed panel
| Dimensions | Width | Height |
|---|---|---|
| Standard | CA31C: 800, 900, 1000, 1100, 1200, 1400 CAT5: 700, 750, 800, 900, 1000, 1100, 1200 | CA31C: 2000 CAT5: 2000 |
| Special | CA31C: 800 - 2000 CAT5: 300 - 1400 | CA31C: up to 2000 CAT5: up to 2000 |
Characteristics of the model range CADURA
Standard height 2000 mm
Quality conforms to EN 14428:2008+A1 standard
Aquaperle anti-plaque glass treatment
Increased cleaning comfort
Available in black mat
Available in white mat
Available in gold
Product characteristics CA31C
3 glass finishes
6 mm safety glass
Width to 2000 mm
Special sizes available
Possibility of cut straight or at an oblique angle
Magnetic closing
Pivot door with outside and inside opening
Product characteristics CAT5
3 glass finishes
6 mm safety glass
Width to 1400 mm
Special sizes available
Possibility of cut straight or at an oblique angle
Clear
Shade
Screen
Highgloss Polished
BLACK LINE
WHITE LINE
GOLD LINE
Ergonomically designed and stylish handle
Magnetic seal
Ergonomically designed and stylish handle
Glass-glass hinge - outside view
Glass-glass hinge - inside view
Hinges with lifting and lowering function
Wall bracket wall-glass - outside view
Wall bracket wall-glass - inside view
