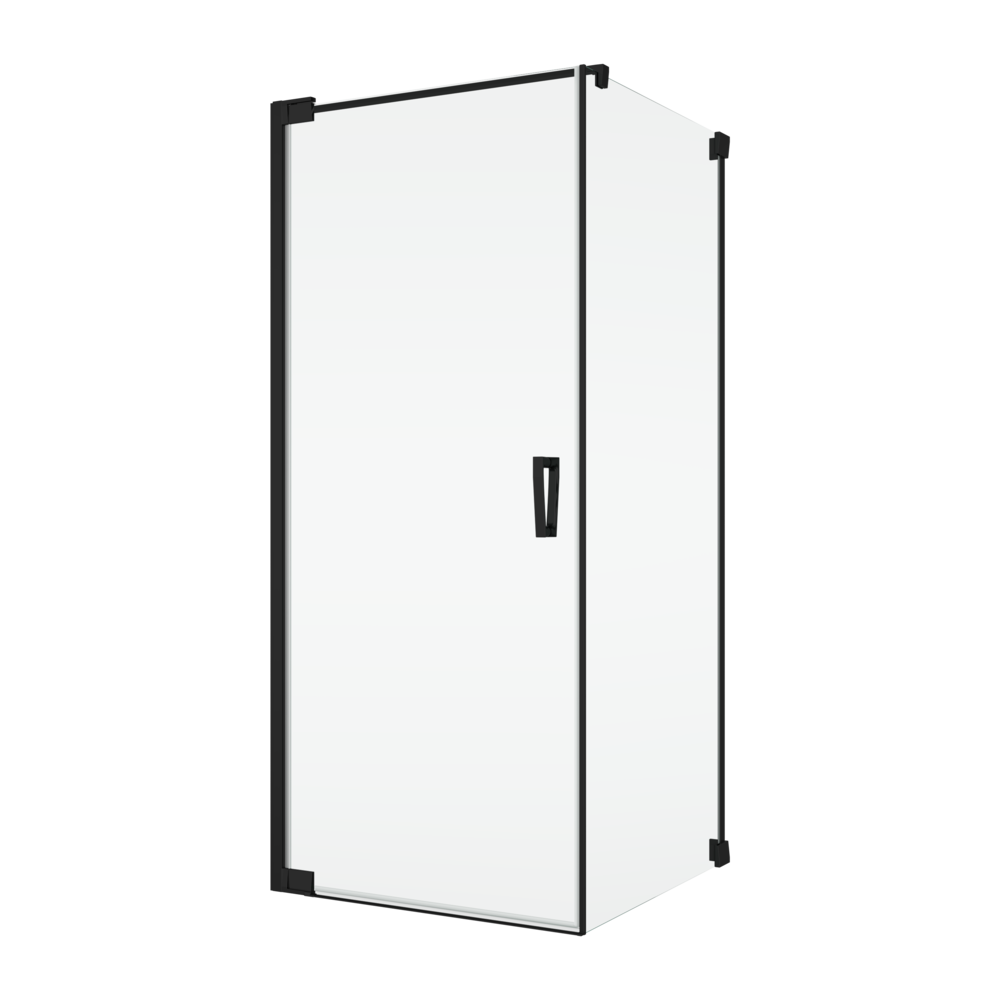

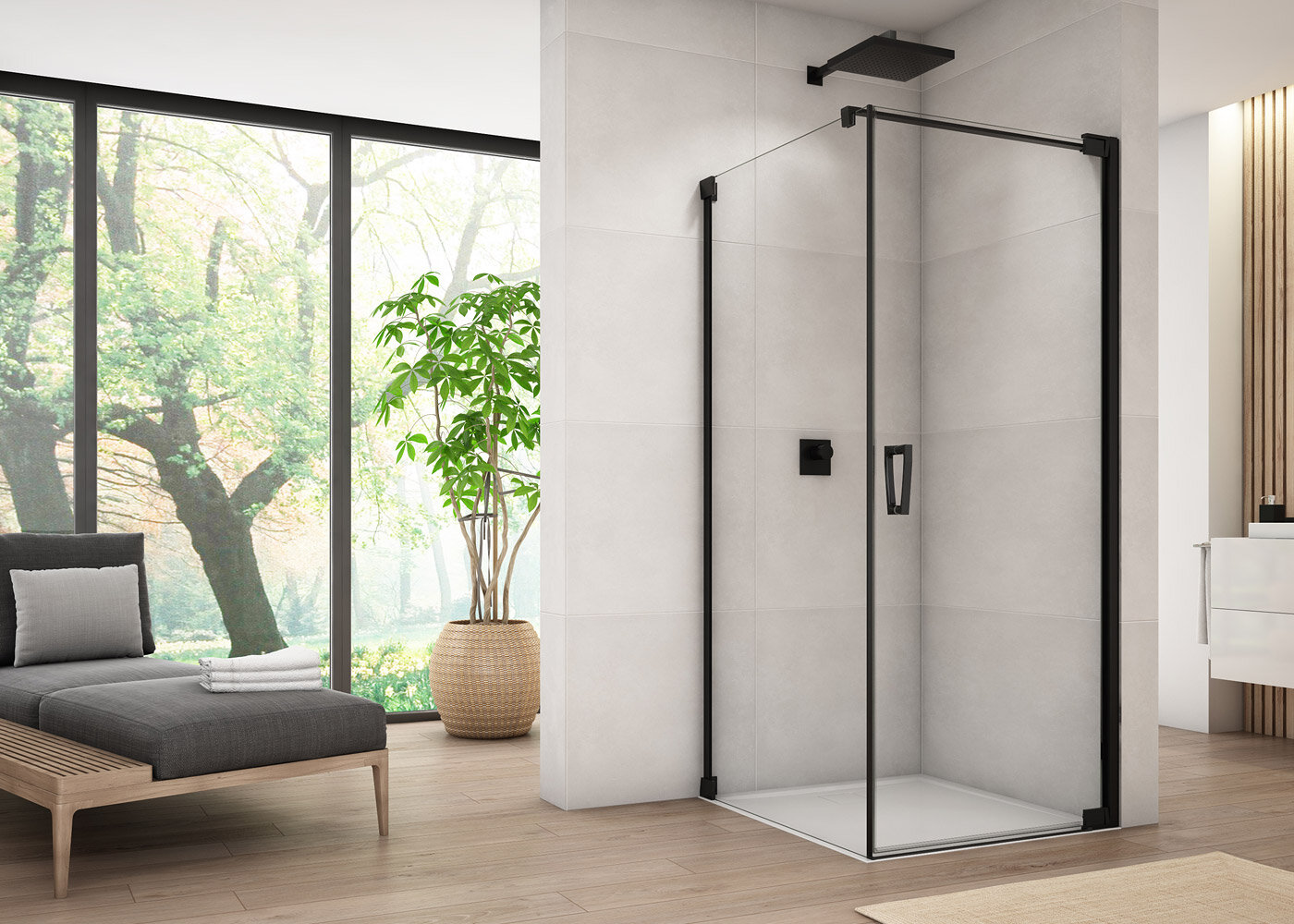

CADURA CA1C+CAT1 - Pivot door + Fixed panel
| Dimensions | Width | Height |
|---|---|---|
| Standard | CA1C: 700, 750, 800, 900, 1000 CAT1: 700, 750, 800, 900, 1000, 1100, 1200 | CA1C: 2000 CAT1: 2000 |
| Special | CA1C: 500 - 1000 CAT1: 300 - 1400 | CA1C: up to 2000 CAT1: up to 2000 |
Characteristics of the model range CADURA
Standard height 2000 mm
Quality conforms to EN 14428:2008+A1 standard
Aquaperle anti-plaque glass treatment
Increased cleaning comfort
Available in black mat
Available in white mat
Available in gold
Product characteristics CA1C
3 glass finishes
6 mm safety glass
Width to 1000 mm
Special sizes available
Possibility of cut straight or at an oblique angle
Pivot door with outside and inside opening
Product characteristics CAT1
3 glass finishes
6 mm safety glass
Width to 1400 mm
Special sizes available
Possibility of cut straight or at an oblique angle
Clear
Shade
Screen
Highgloss Polished
BLACK LINE
WHITE LINE
GOLD LINE
Shortened side panel, besides bathtub (CA1 and CA13)
Profile with a magnetic seal for mounting a shortened side panel
Ergonomically designed and stylish handle
Magnetic seal
Ergonomically designed and stylish handle
Wall bracket wall-glass - outside view
Wall bracket wall-glass - inside view
