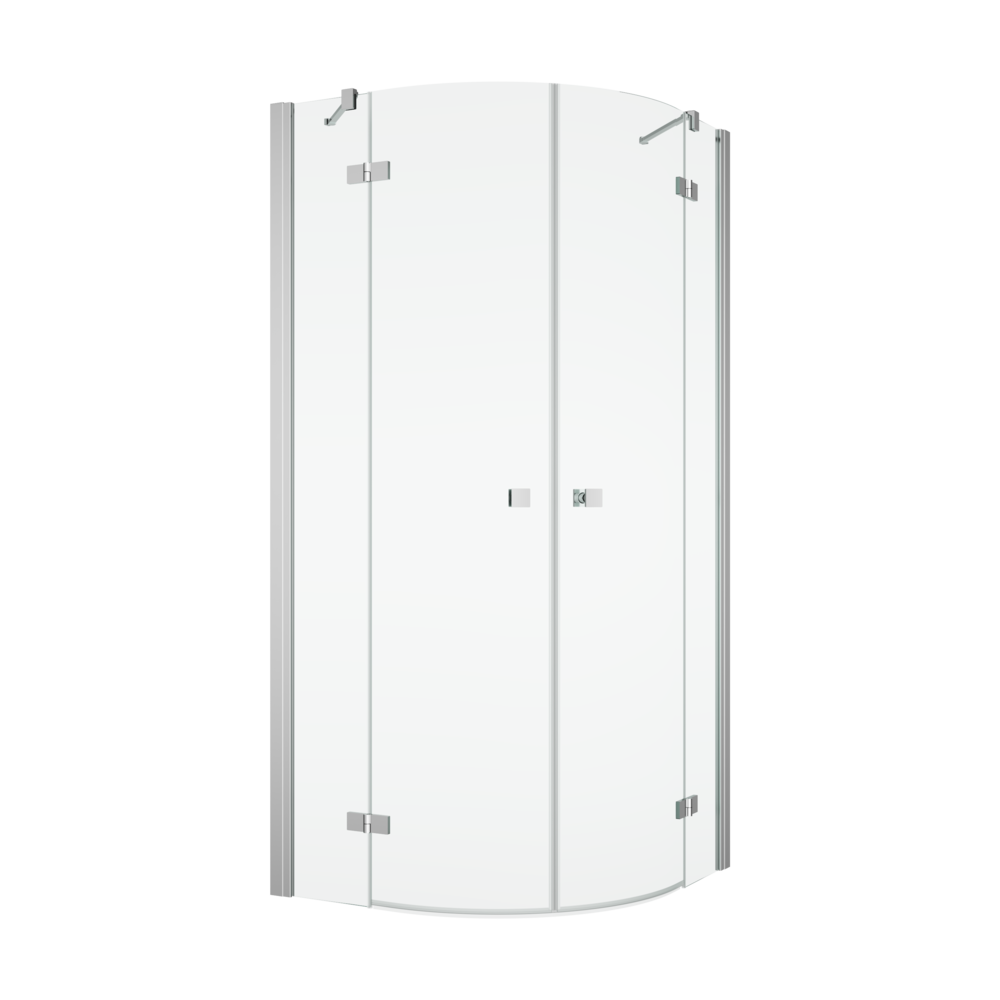

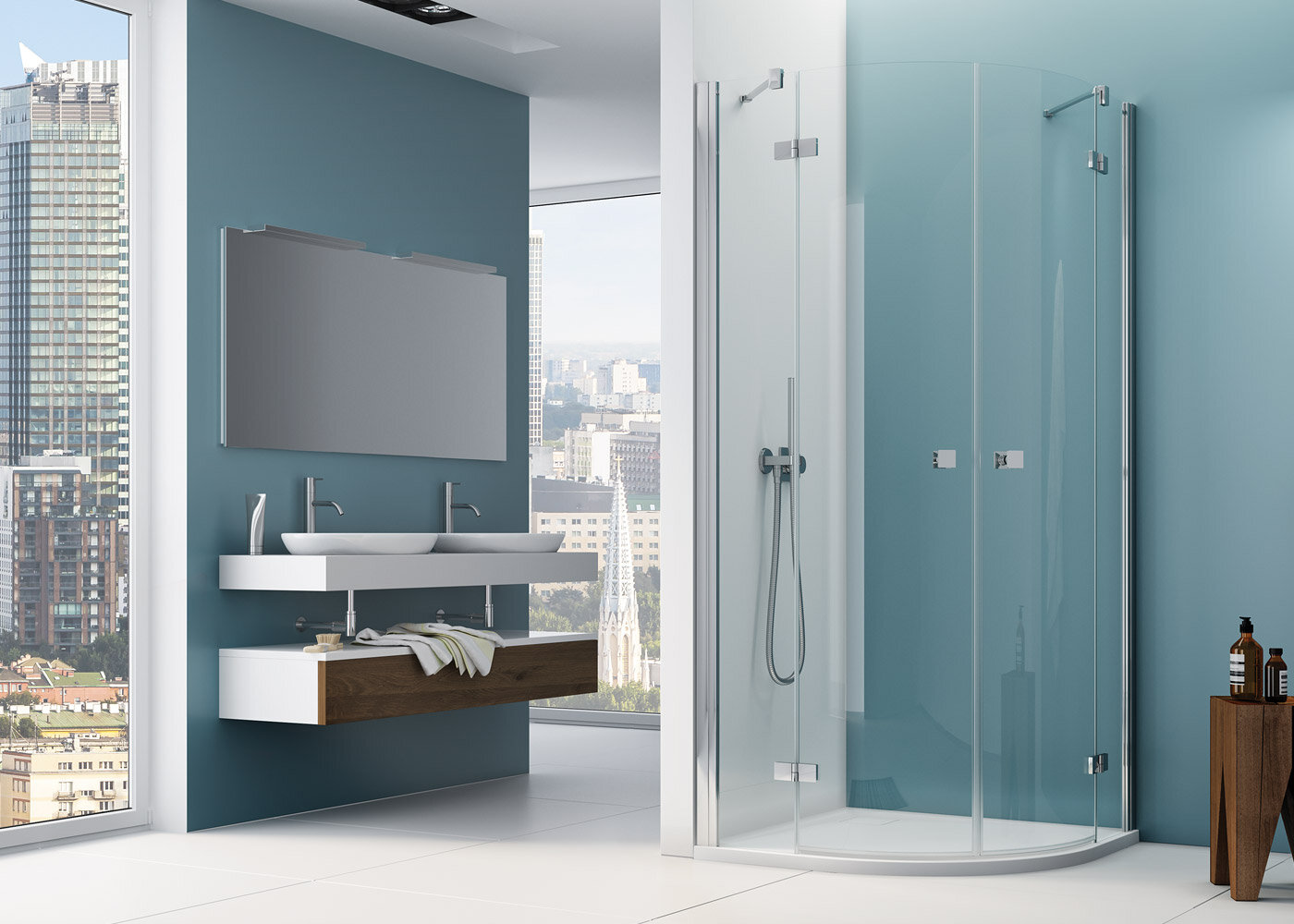

ANNEA ANR - Quadrant swing door with wall clips
| Dimensions | Width | Height |
|---|---|---|
| Standard | 800x800, 900x900, 1000x1000 | 2000 |
| Special | 750 - 1200 | - |
Characteristics of the model range ANNEA
Standard height 2000 mm
Quality conforms to EN 14428:2008+A1 standard
Aquaperle anti-plaque glass treatment
Increased cleaning comfort
Available in black mat
Product characteristics ANR
1 glass finish
6 mm safety glass
Width to 1000 mm
Special sizes available
Radius 500 mm or 550 mm
Magnetic closing
Corner supports included
Swing door with outside opening
Clear
Highgloss Polished
BLACK LINE
Handle
Corner support
Door with a stroke mechanism
On the inside hinges flush with the glass facilitate cleaning due to smooth surfaces
Equalizing profile
Equalizing profile
