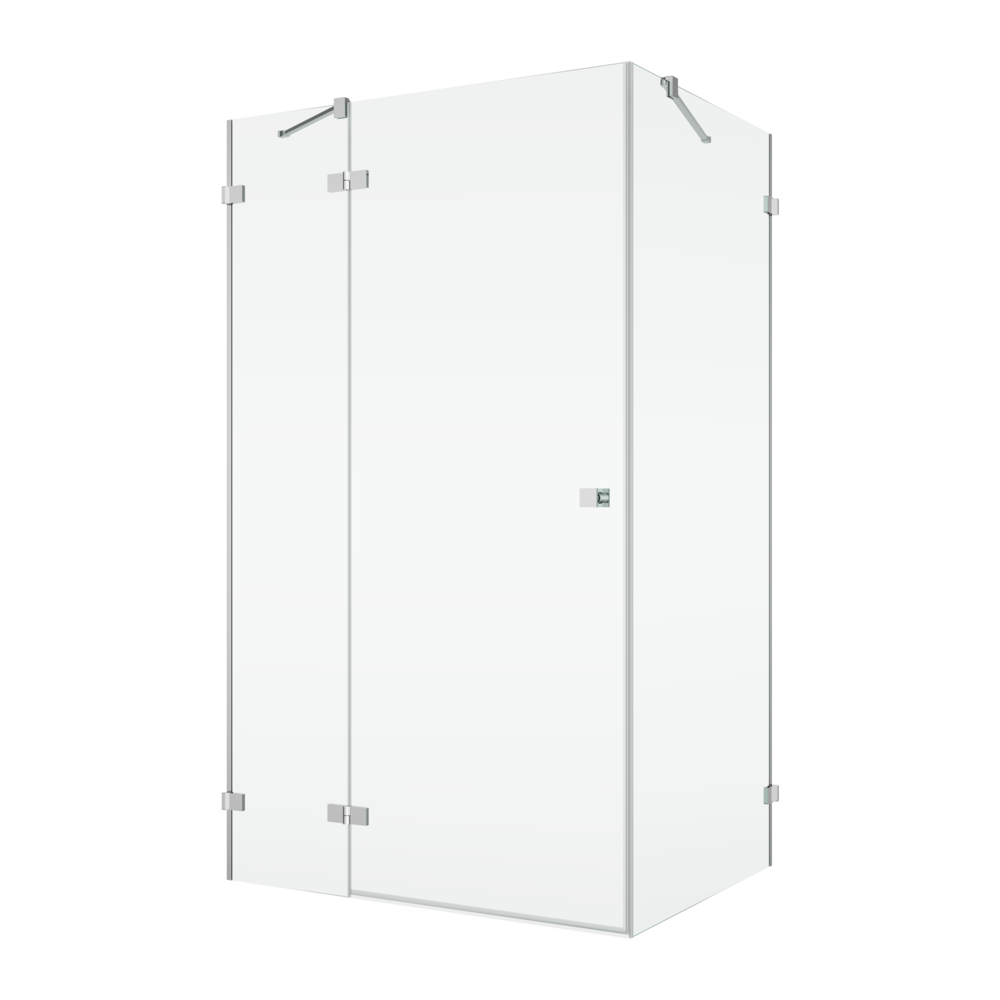

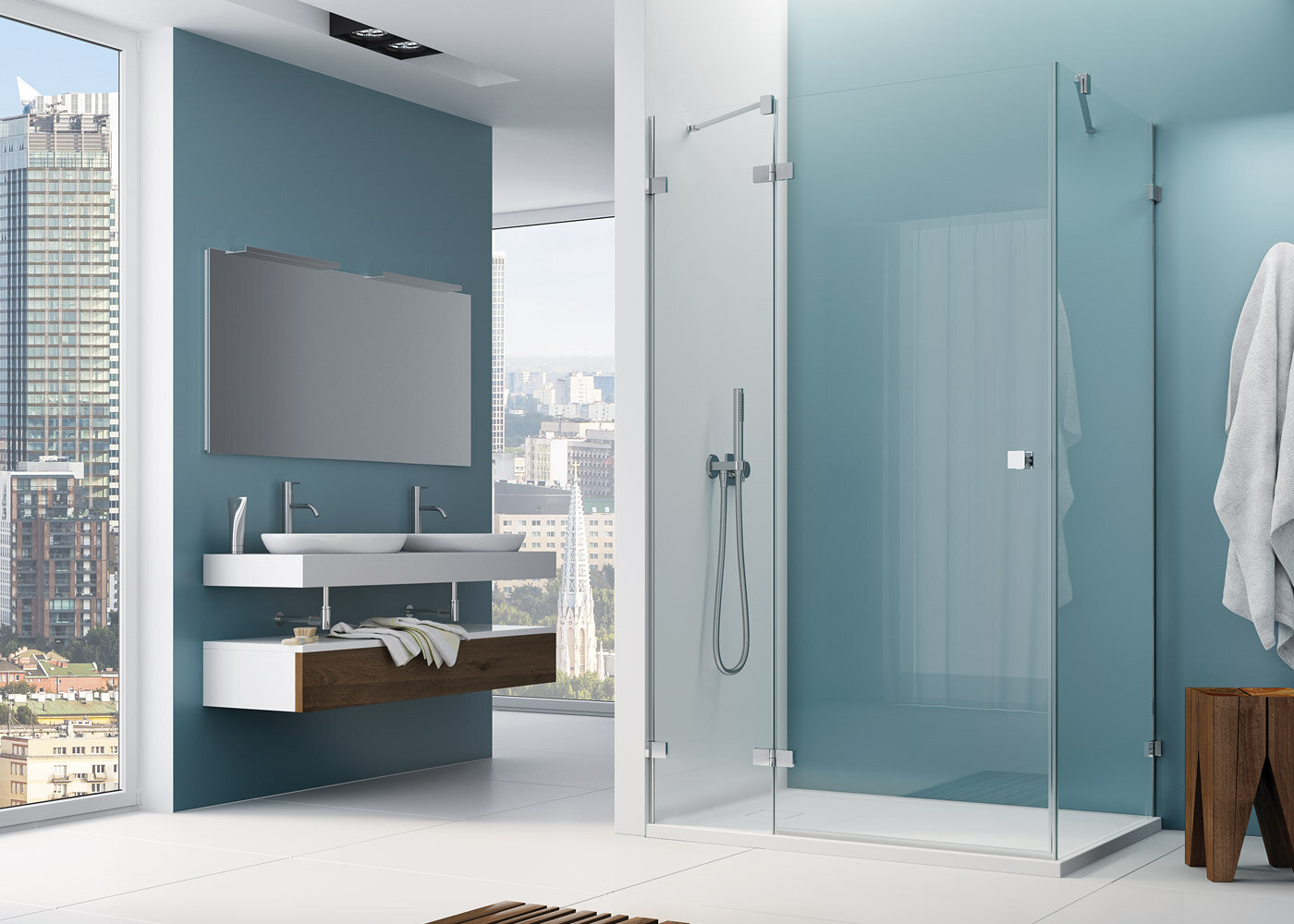

ANNEA AN13W+ANTW - Part opening pivot door + Fixed panel
| Dimensions | Width | Height |
|---|---|---|
| Standard | AN13W: 750, 800, 900, 1000, 1100, 1200 ANTW: 700, 750, 800, 900, 1000, 1200 | AN13W: 2000 ANTW: 2000 |
| Special | AN13W: up to 1200 ANTW: up to 1200 | - |
Characteristics of the model range ANNEA
Standard height 2000 mm
Quality conforms to EN 14428:2008+A1 standard
Aquaperle anti-plaque glass treatment
Increased cleaning comfort
Available in black mat
Product characteristics AN13W
1 glass finish
6 mm safety glass
Width to 1200 mm
Special sizes available
Magnetic closing
Pivot door with outside opening
Product characteristics ANTW
1 glass finish
6 mm safety glass
Width to 1200 mm
Special sizes available
Corner support included
Clear
Highgloss Polished
BLACK LINE
Brushed gold
Brushed nickel
Brushed gun metal
Brushed copper
Mounting without a sill
Watertight sill
Square wall clip
Handle
Door with a stroke mechanism
On the inside hinges flush with the glass facilitate cleaning due to smooth surfaces
